Middle key: One second click for freeze, 5 second click for change work head, 10 second click for power off.
Specification:
-Scanning mode: Electronic array
-Display mode: B, B/M
-Frequency: Convex probe 3.5MHz/5MHz, Linear probe 7.5 MHz/10.0MHz
-Depth: Convex 100mm~280mm, Linear 20mm~55mm
-Image Adjust: Gain, Focus, Harmonic, Denoise
-Puncture assist function: the function of in-plane puncture guide line, out-of-plane puncture guide line, automatic blood vessel measurement, and the enhancement function of needle point development.
-Measure: Length, Area, Angle, Obstetrics
-Image frame rate: 18 frames / second
-Battery working time: 3 hours
- Charge: by wireless charger
-Dimension: 156×60×20mm
-Weight: 270g
-Wifi type: 802.11g/20MHz/5G/450Mbps

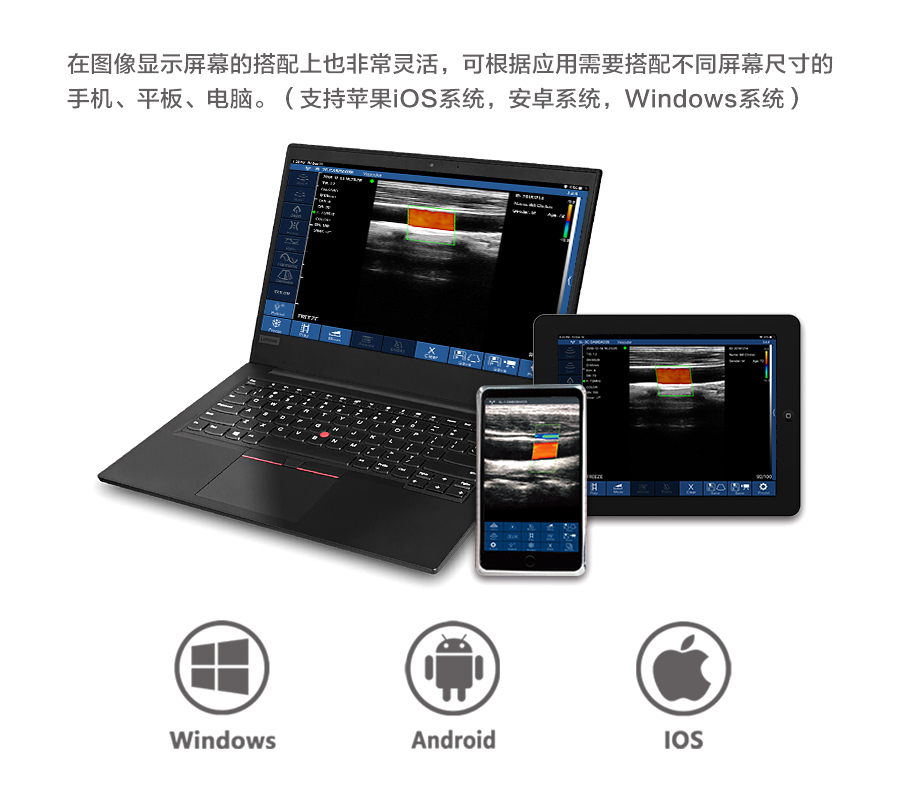

-Working system: Apple iOS and Android, Windows

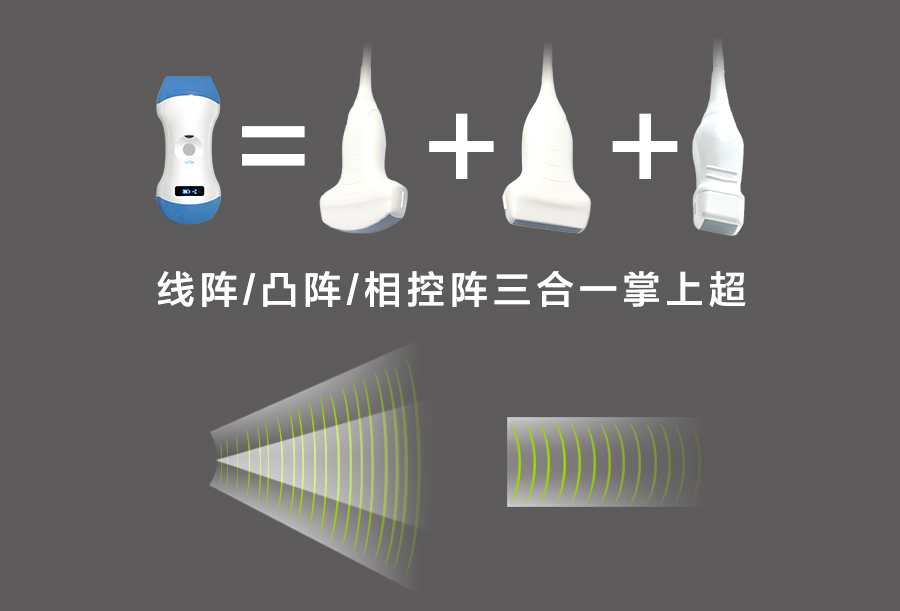

掌上无线双头彩超,由两个头组成(可选择凸面,线性,微凸,阴道),适合同时更多应用!
规格参数:
- 扫描模式:电子阵列
- 显示模式:B,B / M.
- 频率:凸探头3.5MHz / 5MHz,线性探头7.5 MHz / 10.0MHz- 深度:凸面100mm~280mm,线性20mm~55mm
- 图像调整:增益,聚焦,谐波,降噪
- 穿刺辅助功能:面内穿刺引导线,面外穿刺引导线,自动血管测量功能,以及针尖发育的增强功能。
- 测量:长度,面积,角度,产科
- 图像帧率:18帧/秒
- 电池工作时间:3小时
- 充电:通过无线充电器
- 尺寸:156×60×20mm
- 重量:270克
- Wifi类型:802.11g / 20MHz / 5G / 450Mbps
- 工作系统:Apple iOS和Android,Windows
